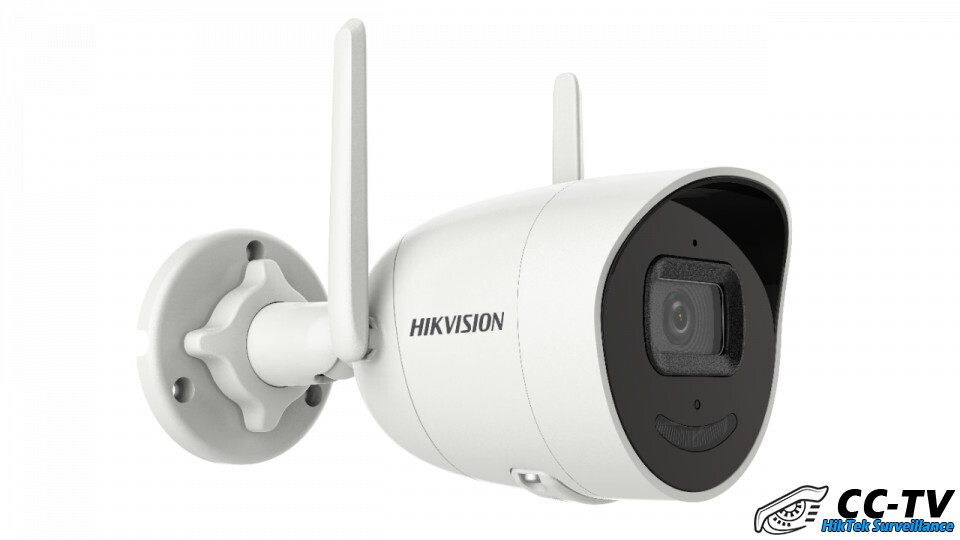

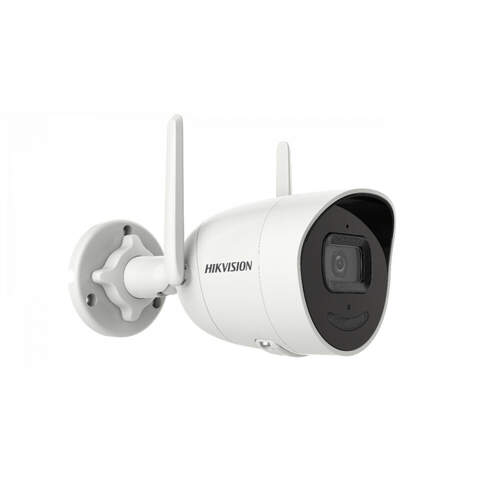

Camera Hikvision IP WiFi cu microfon si difuzor 4MP
Stare stoc:
Nu se mai fabrica
Acest articol este în prezent în stoc și nu poate fi achiziționat.
| Camera | |
|---|---|
| Image Sensor1/2.7" Progressive Scan CMOS | |
| Min. IlluminationColor | 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed1/3s to 1/100,000s | |
| Slow ShutterYes | |
| Wide Dynamic Range120 dB | |
| Day & NightICR Cut | |
| Angle AdjustmentPan | 0° to 360°, tilt |
| Lens | |
| Lens Type & FOV2.8 mm | horizontal FOV |
| ApertureF1.6 | |
| Lens MountM12 | |
| Illuminator | |
| IR RangeUp to 30 m | |
| Wavelength850 nm | |
| Smart Supplement LightYes | |
| Video | |
| Max. Resolution2560 × 1440 | |
| Main Stream50Hz | 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz |
| Sub Stream50Hz | 25 fps (640 × 360) 60Hz |
| Video CompressionMain stream/Sub-stream | H.265/H.264 |
| Video Bit Rate32 Kbps to 8 Mbps | |
| H.264 TypeBaseLine Profile/Main Profile/High Profile | |
| H.265 TypeMain Profile | |
| Stream TypeMain stream and sub-stream | |
| Region Of Interest (ROI)1 fixed region for main stream | |
| Audio | |
| Environment Noise FilteringYes | |
| Audio Sampling Rate8 kHz/16 kHz | |
| Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM | |
| Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) | |
| Network | |
| Simultaneous Live ViewUp to 6 channels | |
| APIISAPI, SDK | |
| ProtocolsTCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP,R TCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS | |
| User/HostUp to 32 users 3 levels | administrator, operator and user |
| SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2 | |
| Network StorageNAS(NFS, SMB/CIFS) | |
| ClientWired network | Hik-Connect, iVMS-4200 Wi-Fi |
| Web BrowserPlug-in required live view | IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11; Plug-in free live view |
| Image | |
| Day/Night SwitchDay/Night/Auto/Schedule | |
| Image EnhancementBLC, HLC, 3D DNR | |
| Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser | |
| Interface | |
| On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB | |
| Hardware ResetYes | |
| Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port | |
| Intelligent (Traditional Algorithm) | |
| Basic EventMotion detection, flashing alarm light output, audible alarm output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) | |
| General | |
| Linkage MethodUpload to NAS/memory card, notify surveillance center, trigger record, trigger capture, audiable warning | |
| Online UpgradeYes | |
| Firmware VersionV5.5.132 | |
| General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, watermark, IP address filter, flash log, pixel counter | |
| Software ResetYes | |
| Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F) | |
| Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F) | |
| Power Supply12 VDC ± 25%, reverse polarity protection | |
| Power Consumption And Current12 VDC, 0.6 A, 7.2 W | |
| Power InterfaceØ5.5 mm coaxial power plug | |
| MaterialFront cover | metal, back cover |
| Camera Dimension175.6× 73.0 × 89.1 mm (6.91" × 2.87" × 3.51") | |
| Package Dimension260 × 125 × 125 mm (10.24" × 4.92" × 4.92") | |
| Camera Weight450 g (0.99 lb.) | |
| With Package Weight770 g (1.70 lb.) | |
| Approval | |
| EMCFCC ID (47 CFR Part 15, Subpart B); CE-EMC (EN 55032 | 2015, EN 61000-3-2 |
| RFFCC ID (FCC Part 15.247(BT or 2.4G)); IC ID (RSS-247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311 | 2008(BT or 2.4G)); WPC (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311 |
| SafetyUL (UL 60950-1); CB (IEC 60950-1 | 2005 + Am 1 |
| EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Reach Regulation (EC) No 1907/2006 | |
| ProtectionIngress protection | IP66 (IEC 60529-2013) |
| Wi-Fi | |
| Encryption Mode64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA4-PSK | |
| Wi-Fi ProtocolIEEE802.11b, 802.11g, 802.11n | |
| Frequency Range2.4 GHz - 2.4835 GHz | |
| Channel Bandwidth20/40 MHz | |
| Modulation802.11b | CCK, QPSK, BPSK, 802.11g/n |
| Wireless RangeUp to 120 m (The performance varies based on actual environment) | |
